Extruders and Extrusion Lines
Extrusion Lines for Top Performance
The core of our expertise lies in co-rotating, intermeshing twin-screw extruders of the type FED-MT (MT = Multi Task). MT stands for the diversity of applications for which the extruder can be used and for quick change-overs from one product to another.
We demand performance: the MTS model range is specially designed to meet the requirements of compounding engineering plastics, masterbatches and tailormade applications.

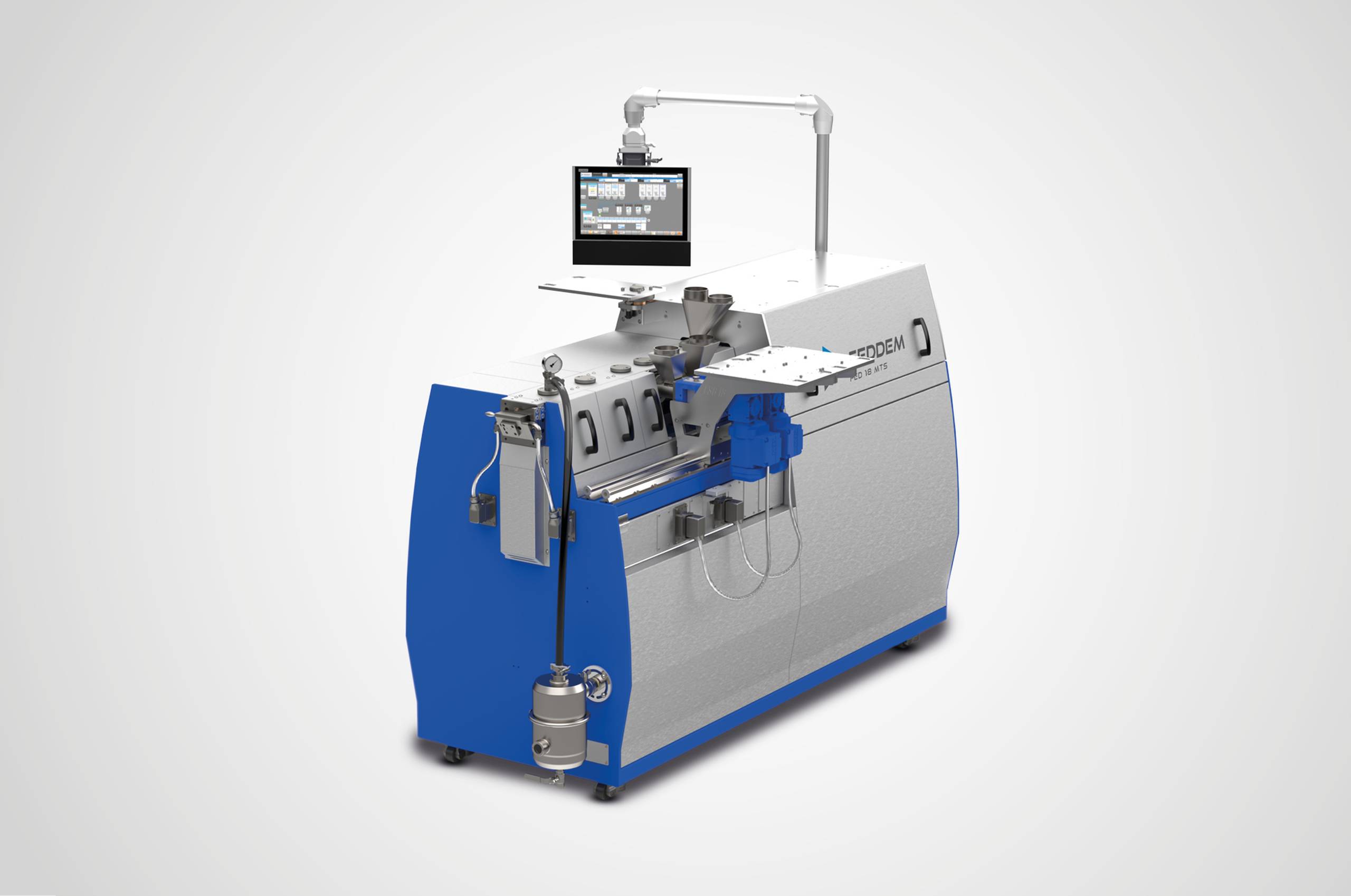

Screw diameters of 26–82 mm and a product-dependent throughput of 40 kg up to 4 tonnes per hour are available as well as laboratory extruders. With FEDDEM’s production systems, you can achieve the highest product quality with optimised material throughput. And you can rely on the guaranteed properties of FEDDEM systems and our personal service whenever you need it.

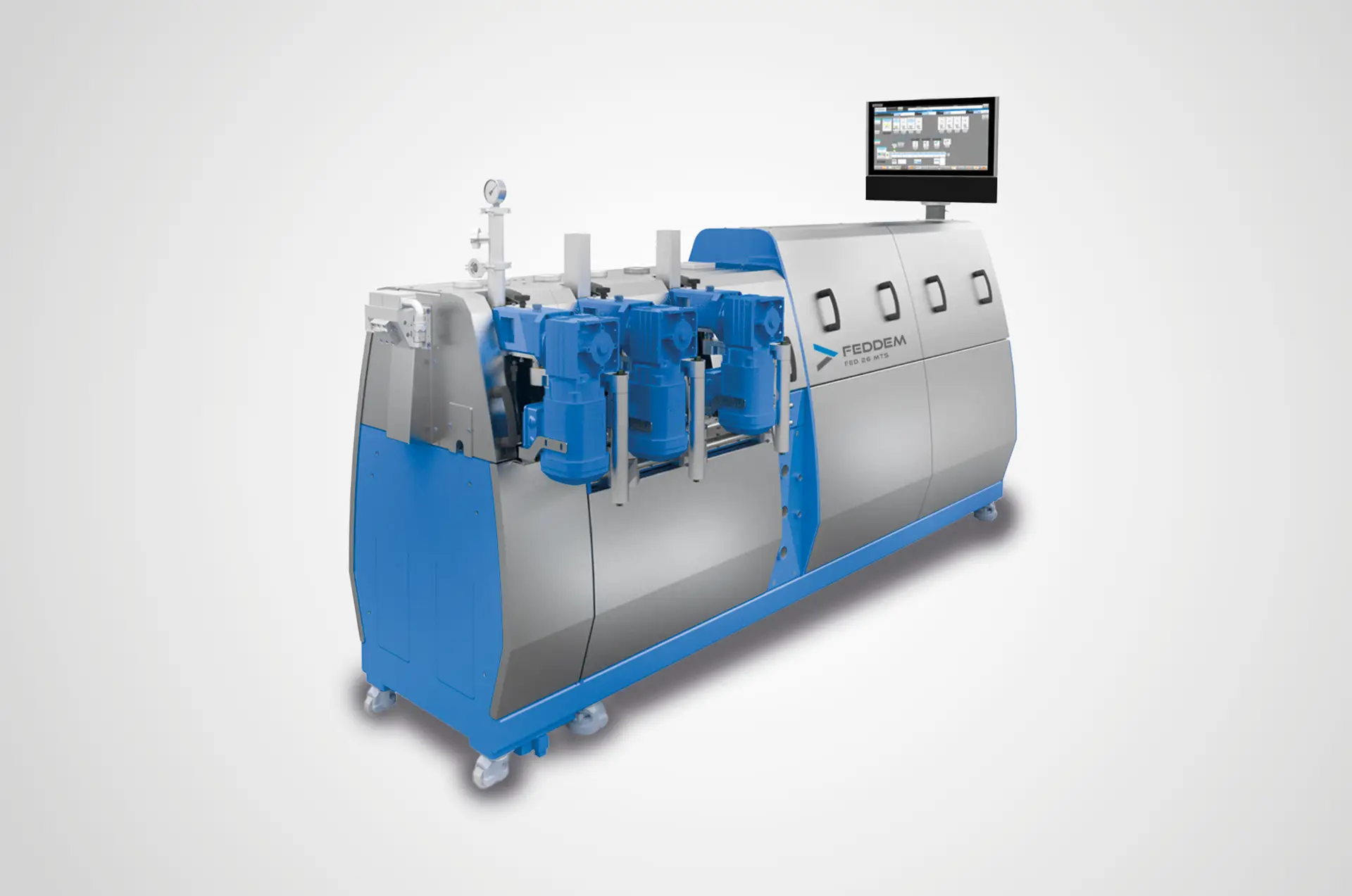

FED 26 MTS
Ø Screw: 26 mm
Speed max.: 1.200 rpm
Drive power max.: 34 kW

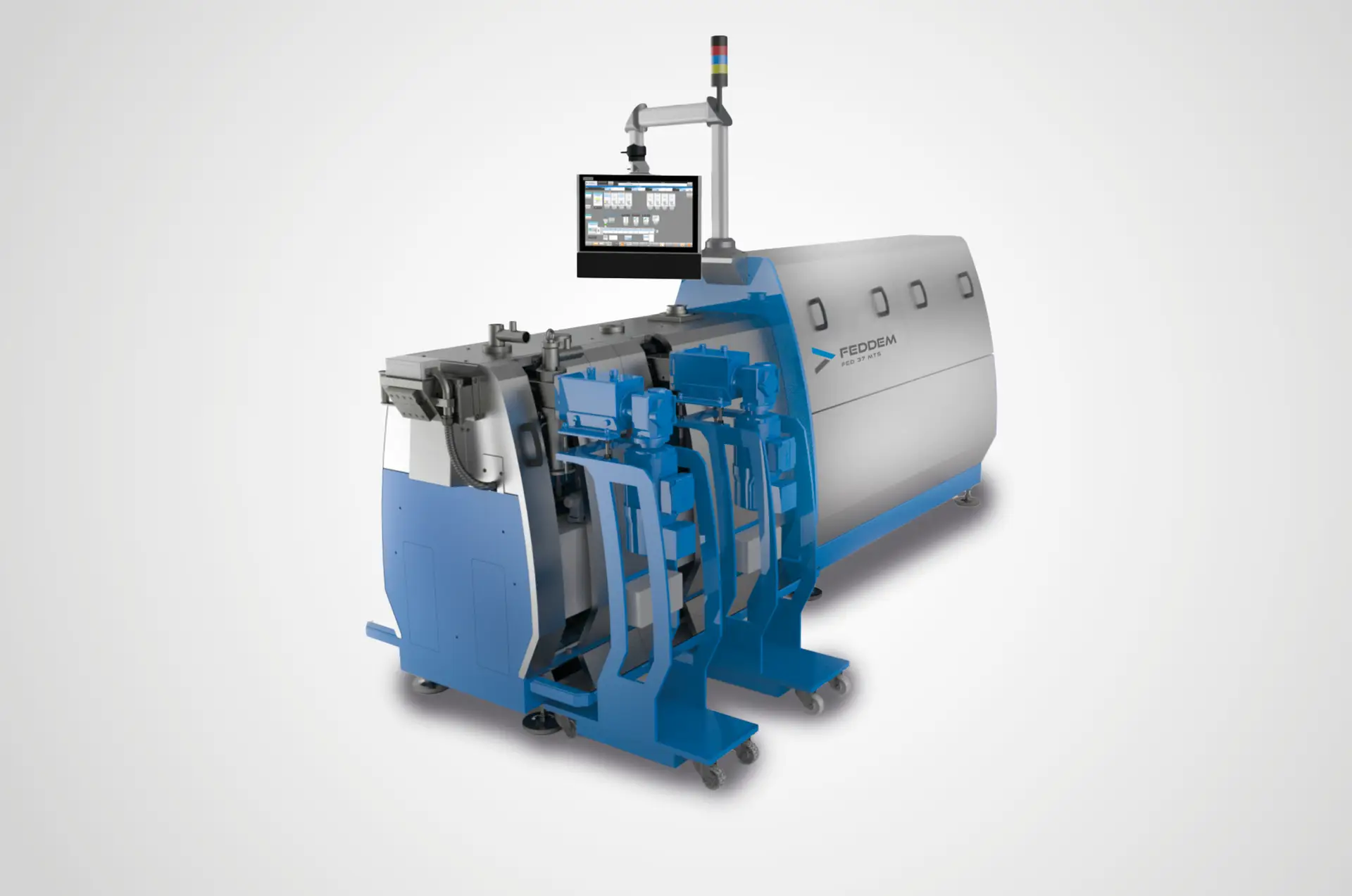

FED 37 MTS
Ø Screw: 37 mm
Speed max.: 1.200 rpm
Drive power max.: 85 kW

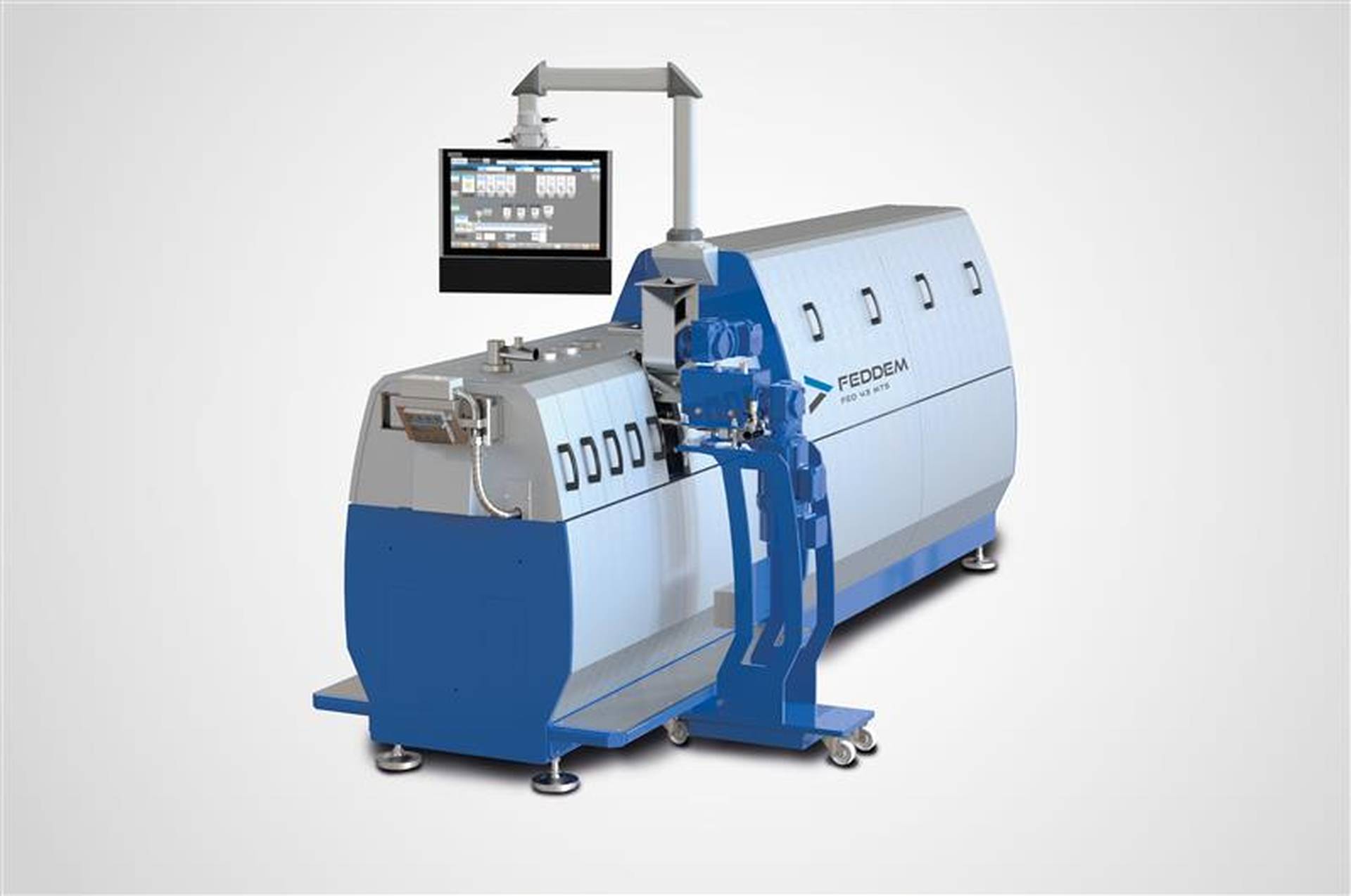

FED 43 MTS
Ø Screw: 43 mm
Speed max.: 1.200 rpm
Drive power max.: 142 kW

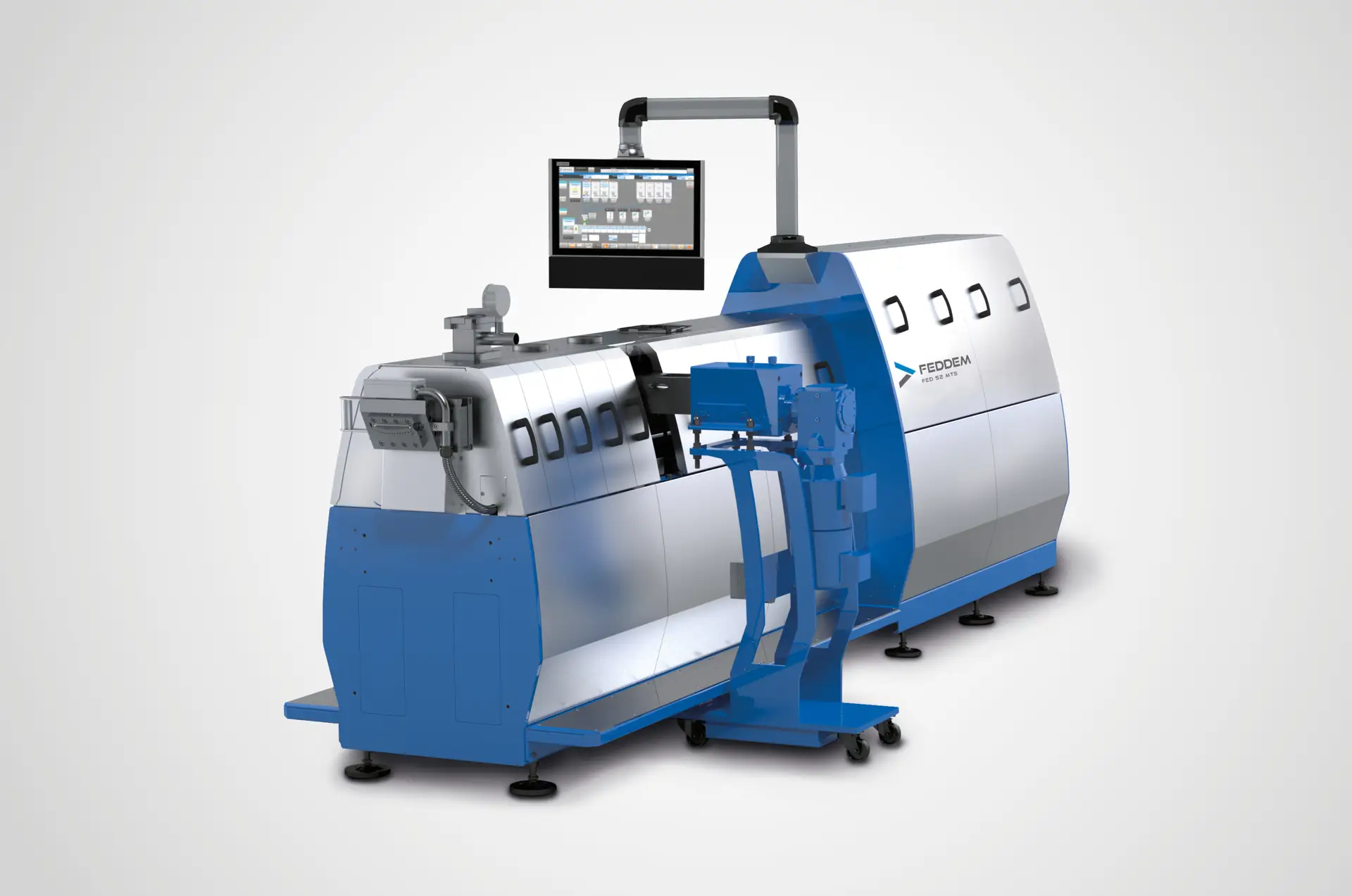

FED 52 MTS
Ø Screw: 52 mm
Speed max.: 1.200 rpm
Drive power max.: 225 kW

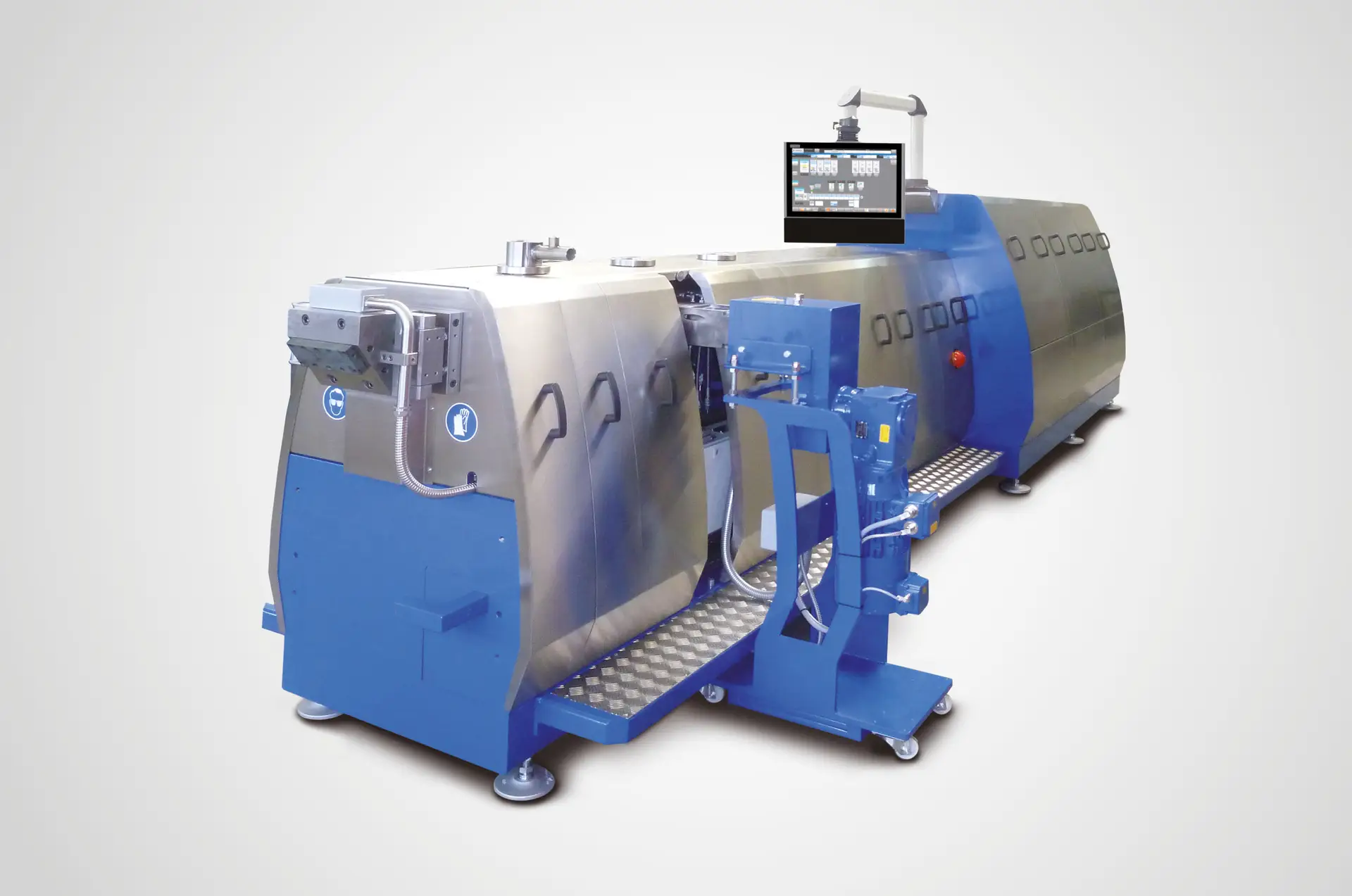

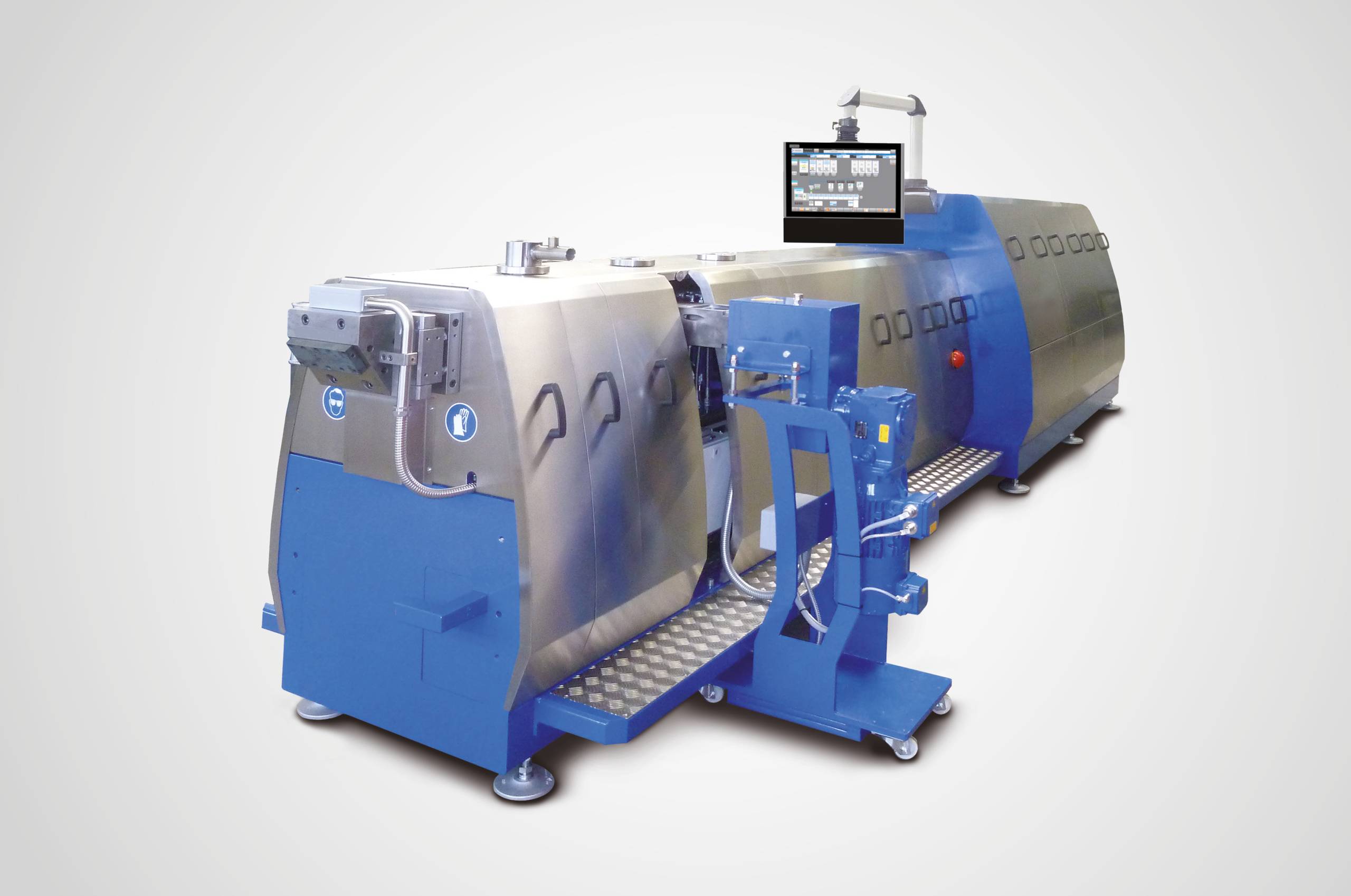

FED 72 MTS
Ø Screw: 72 mm
Speed max.: 1.200 rpm
Drive power max.: 600 kW

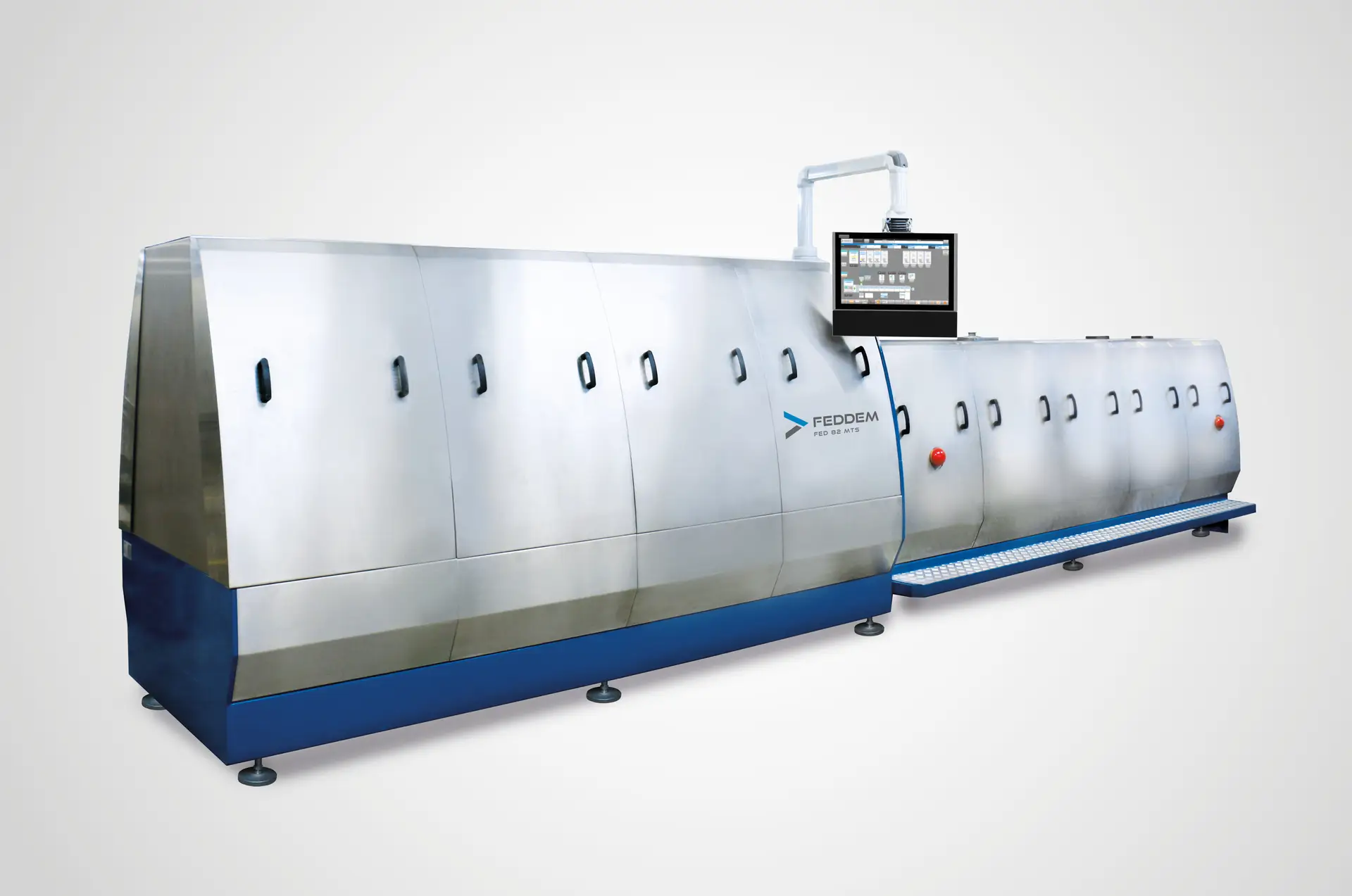

FED 82 MTS
Ø Screw: 82 mm
Speed max.: 900 rpm
Drive power max.: 975 kW
The Ideal Machine for Your Compounding Processes
With respect to screw geometry and available torque, the MT range represents an optimised design for any number of compounding processes – designed for high capacities while simultaneously delivering excellent product quality. Speeds of up to 1,200 rpm and high power densities of up to 16 Nm/cm³ are available. The processing units are also equipped with the corresponding wear protection as required. We configure the worm shaft and the barrel to meet your individual process requirements.
Image dimensions not found
Change image or reupload it
Screw Geometry for Gentle Processing
Outstanding product quality can only be achieved if the screw geometry introduce the energy required for their processing task without partially overheating the product. The FEDDEM MTS extruder achieves this goal by means of the unique screw geometry of its melting and mixing elements in which the product can dwell for a sufficiently long time to absorb the required energy without temperature peaks. As the melting as well as the mixing of fillers can be carried out with screw units having same geometry, reduced warehousing of replacement parts is possible.
Disclaimer: All specifications and information given on this website are based on our current knowledge and experience. A legally binding promise of certain characteristics or suitability for a concrete individual case cannot be derived from this information. The information supplied here is not intended to release processors and users from the responsibility of carrying out their own tests and inspections in each concrete individual case.
Want to know more?
We will gladly inform you about the most suitable compounding line for you.
