Dual Cleaning Brush

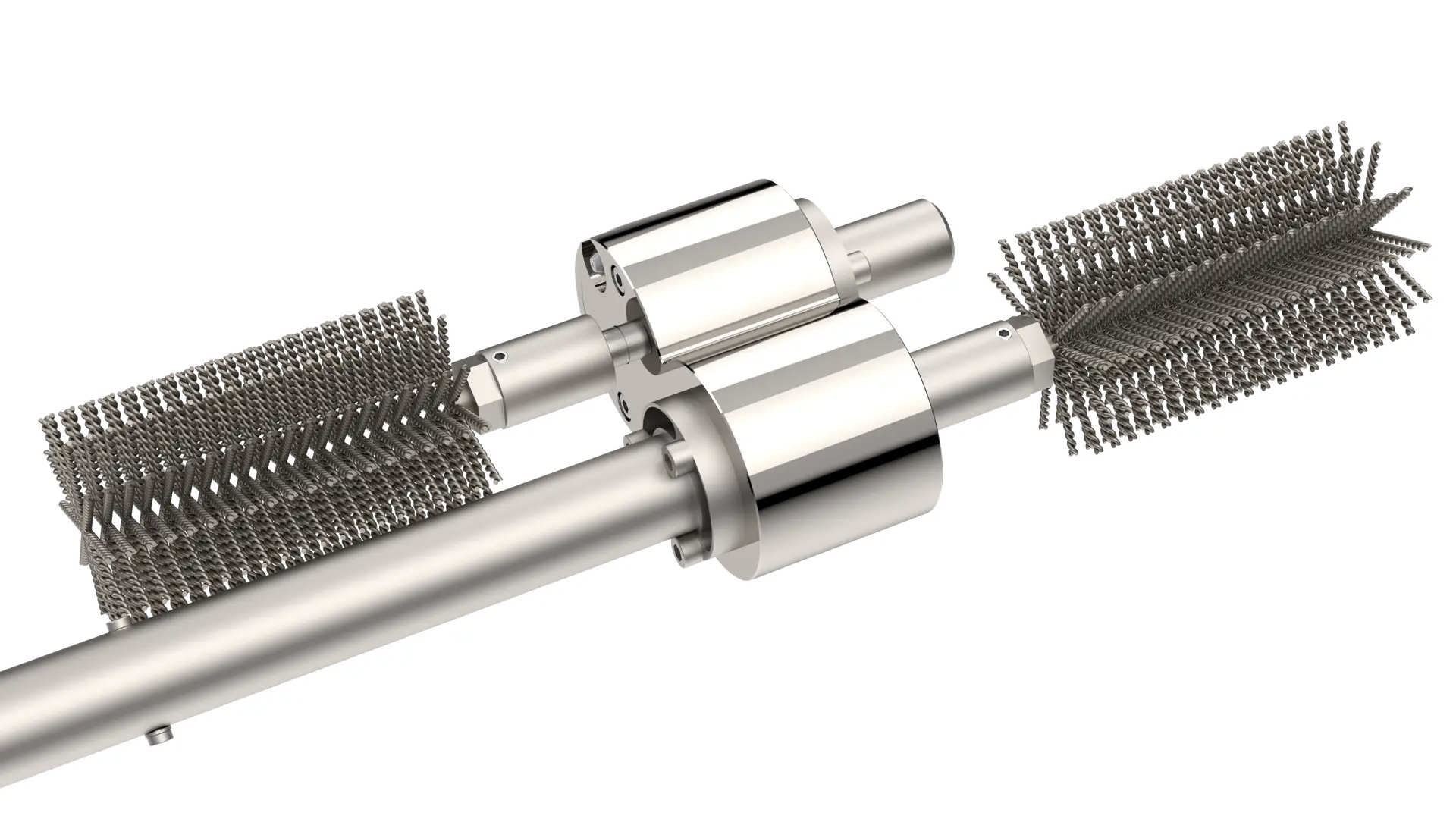

The principle of the FEDDEM dual brush assembly for cleaning has now proven itself in installations throughout Europe. The two brushes are driven centrally via a distribution gearbox and can be inserted into the figure-8-bore of the twin-screw extruder at operating temperature after the screws have been removed. This considerably reduces cooling and heating times of the extruder and minimises the downtime of the line during product changes. The distribution gear and the diameter of the brushes are matched to the centre-line distance and diameter of the figure-8-bore of the target extruder. Our dual brushes are currently available for extruder sizes from 48 to 87 mm.

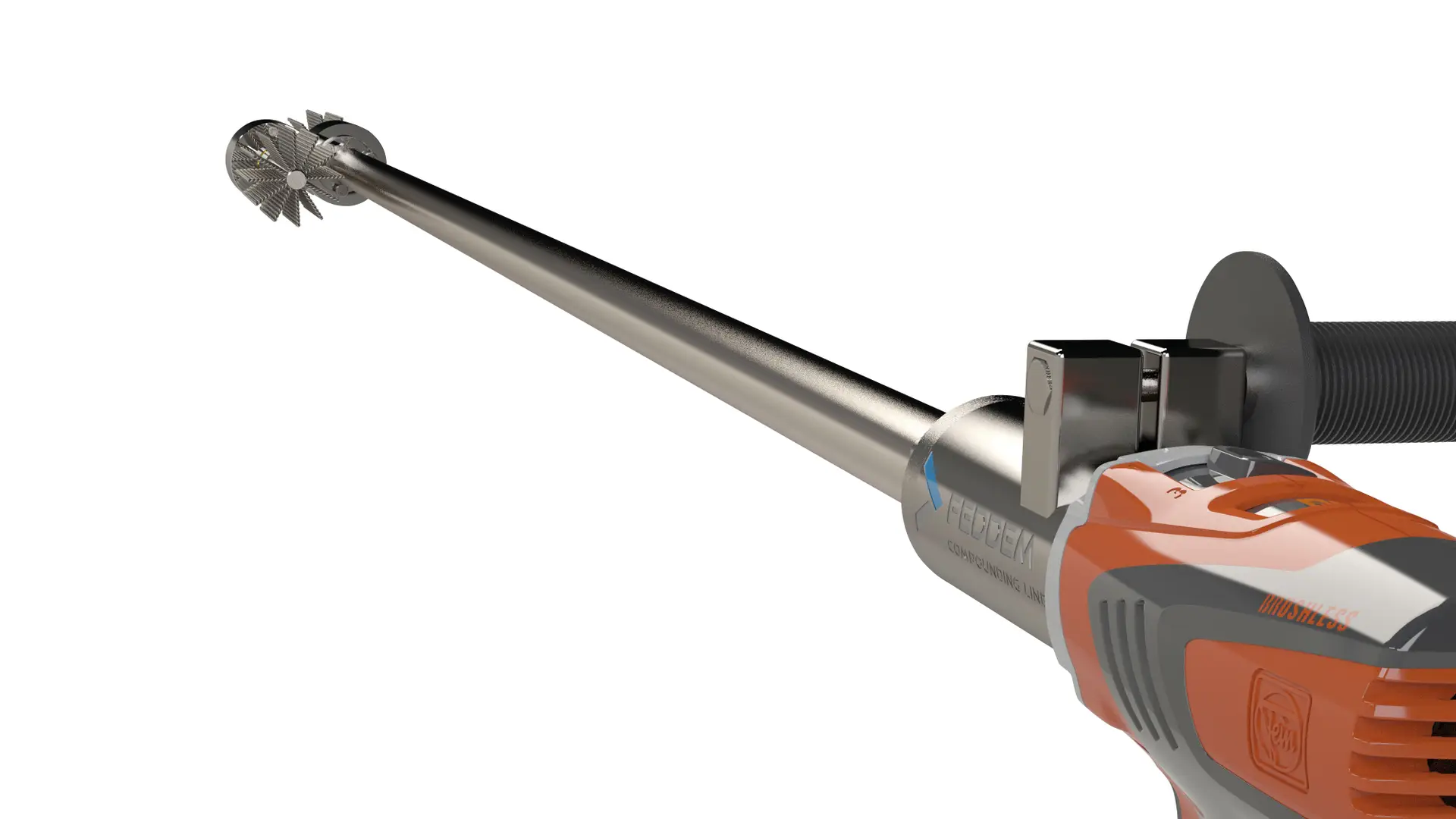

Due to the special design of the unit, any torque shocks (e.g. caused by a blocking brush) are already introduced into the processing section of the extruder by the distribution gearbox and do not reach the operator of the unit. If the unit is handled in accordance with the operating instructions, injuries caused by torque shocks when cleaning extruder housings are a thing of the past. Older FEDDEM cleaning brushes can be converted to battery operation.
